Water Recirculation Module
Saving water is good for the restaurateur’s wallet and for the planet.
Main features
How does it work?
Through mechanical filtration and decantation, this module allows the reuse of water from grease filtration systems via sprayed water (Hidro extractor hood or wet filtration modules).
This recirculation module features a grease separator as its central element. Water enters the separator through an elongated deflector, which ensures a slow and even distribution of the incoming flow. Fats and oils separate and rise to the surface due to gravity. During operation, a floating layer forms and increases in thickness, and when the maximum storage volume is reached, the fats must be removed.
A level sensor monitors the grease separator capacity according to established limits. The recirculation system mixes fresh water with filtered water from the hood via a 3-way valve. At the same time, the pump sends water back to the filtration system.
It can be complemented with a control panel that includes control and regulation commands, potentiometers, and indicator lights for operation, fault, and cleaning, and optionally frequency inverters for water pressure control. This control panel makes the system even more efficient.

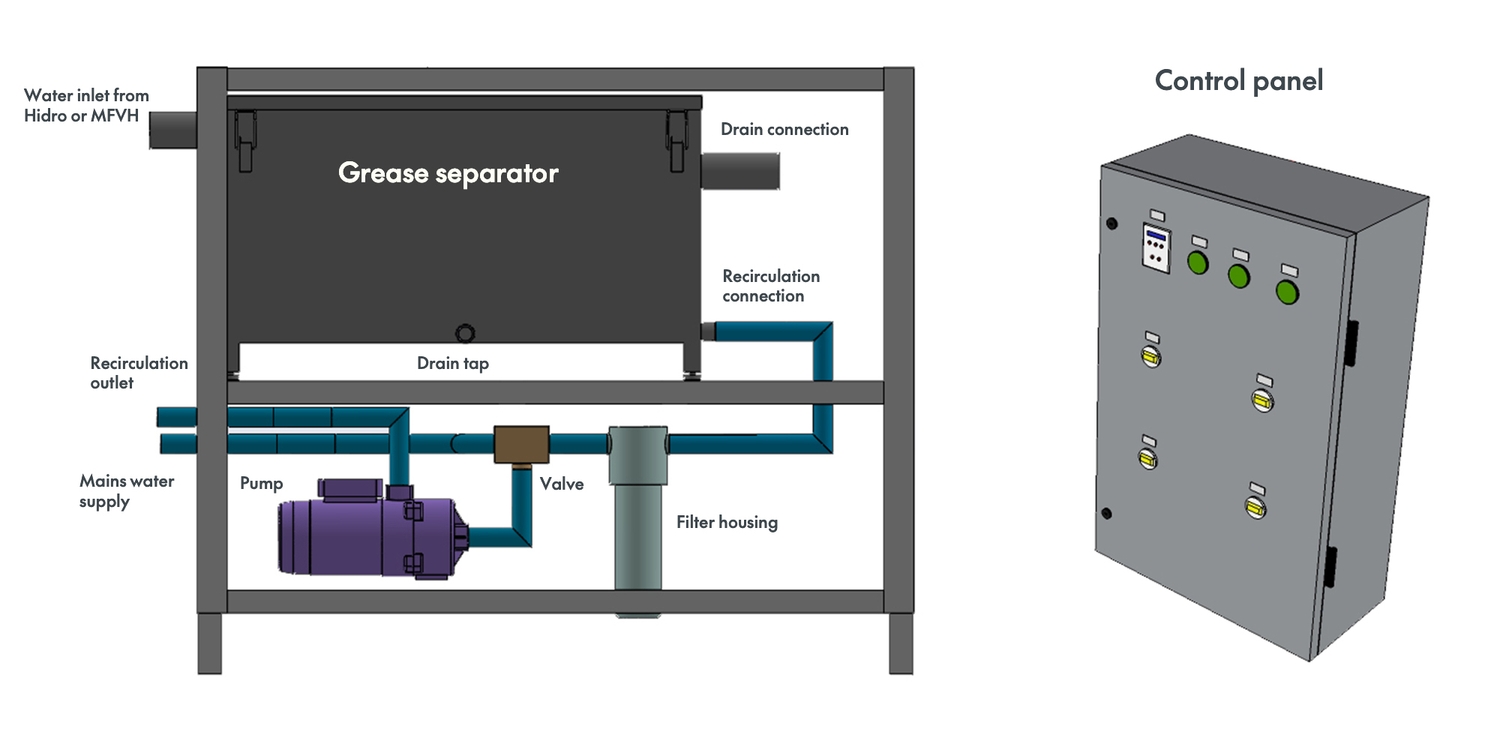

Components
-Morgui grease separator with level sensor (Check capacities). -Horizontal multistage monobloc pump: IP54, maximum operating temperature 60 °C. -3-way valve: IP50, fluid temperature from 1 to 95 °C. -Filter housing D501 + 9” polypropylene filter D500. -PVC piping for connecting the components, 1” (25.4 mm). -Control panel (not included): this unit controls and regulates the operation of the water regulation module. · Can be supplied with a stainless steel or lacquered sheet metal cabinet. · Optionally, it can include frequency converters for air extraction/supply. · Includes frequency converter for water pump regulation and control commands, potentiometers, and indicator lights for operation, fault, cleaning... · The unit is supplied fully programmed. -Frequency inverter (not included): for controlling water pressure.
All components of this system are installed in a stainless steel cabinet, accessible from both sides.
