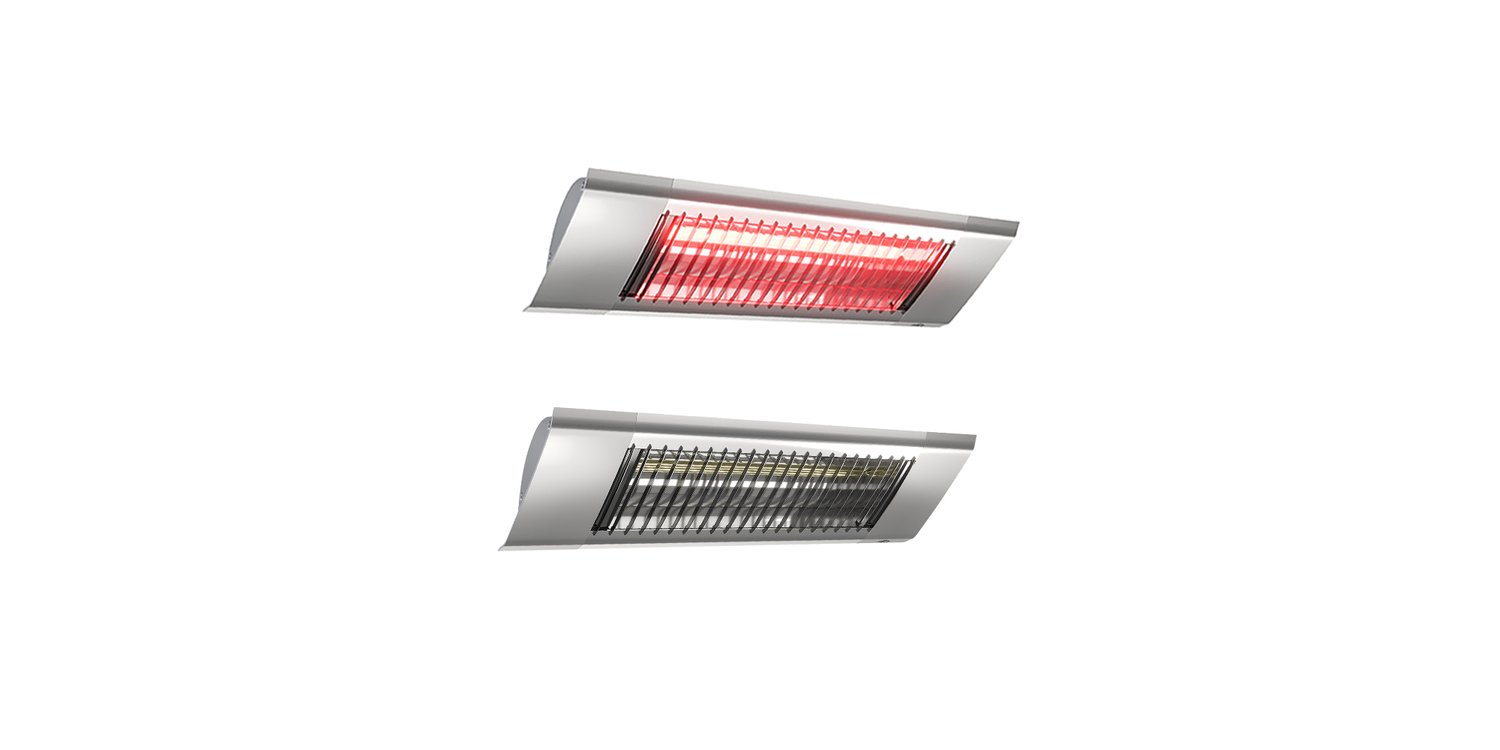

IH Frico Radiant Outdoor Heaters
Effective heat for exposed and stylish outdoor environments.
Main features
The IH infrared heater is powerful, with a high filament temperature of 2200 °C, and is the best option for exposed outdoor environments where design is important.

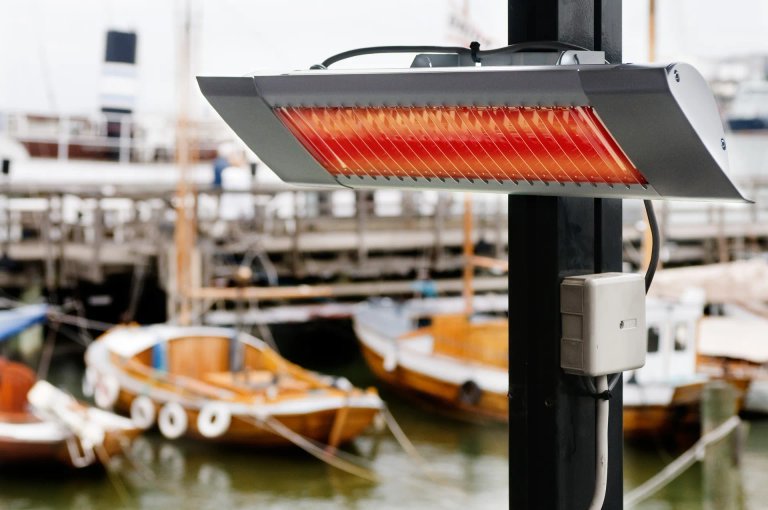

IH is installed horizontally on the walls with the supplied support. The heater can be tilted up to 45°. The heater can also be mounted, for example, on an umbrella or on a pole; for this, a suitable U-bolt (not included) is used together with the supplied console. For ceiling mounting, use the IHE ceiling bracket (accessory). For other mounting alternatives, see the accessories. IH is equipped with a 0.9 meter cable with plug for connection to a grounded outlet.
IH consists of a halogen lamp with a faint red glow and a very high intensity and a very polished reflector for optimal heat distribution.
There are different options for intelligent control and energy saving.
Recommended installation height
1,8 - 2,5 m (IHW) / 2,3 - 3,5 m (IHF)
Dimensions & Weight
En función del modelo.
Csing
White aluminium (RAL 9006)
IP protection class
IP44
Working ambient temperature (dry conditions)
-20 to 30 °C
Filament temperature (MAX)
2200 °C
Voltage
230 V
IHW
IHW provides a 60-degree wide heat distribution for lower installation heights.
Heat output (kW) = 1, 500x77x169 mm, 1.9 kg. Current, heat: 4.3 A Heat output (kW) = 1.5, 500x77x169 mm, 1.9 kg. Current, heat: 6.5 A Heat output (kW) = 2, 676x77x169 mm, 2.7 kg. Current, heat: 8.7 A
IHF
The IHF units provide a 40-degree directed heat distribution and are installed at a greater height.
Heat output (kW) = 1, 500x77x169 mm, 1.9 kg. Current, heat: 4.3 A Heat output (kW) = 1.5, 500x77x169 mm, 1.9 kg. Current, heat: 6.5 A Heat output (kW) = 2, 676x77x169 mm, 2.7 kg. Current, heat: 8.7 A
