The IR infrared heater is a heavy-duty panel heater suitable for full or supplemental heating of large rooms with high ceilings. It can also be used outdoors, for example, in stadium stands or to keep loading docks dry and frost-free.
Search products by name
Fans & ventilation units | Morgui
Frico Industrial IR Radiant Heaters
Efficient heating for premises with large volumes and high ceilings.
Main features

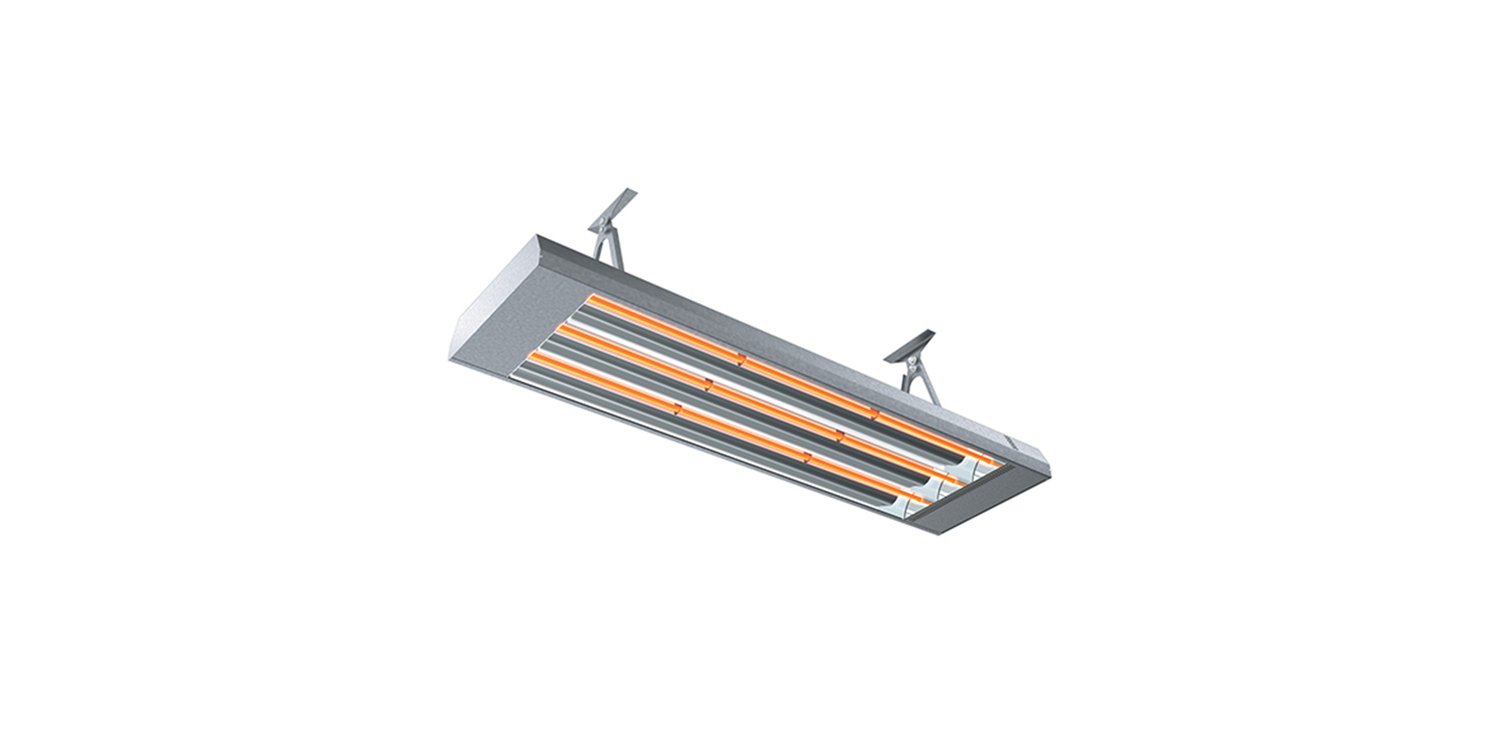

The unit is equipped with bright anodized aluminium reflectors that ensure optimal heat distribution. The IR industrial infrared heater is installed horizontally using mounting brackets that can be installed directly against the ceiling or wall. The mounting allows for a 30° adjustable beam angle in either direction. The heaters can also be suspended from a cable (with a minimum diameter of 3 mm). The IR industrial infrared heater is designed for permanent installation. Double connection sockets on the junction box allow for additional connection of one heater to another. A protective grille is available as an accessory.
To comply with the Ecodesign Regulation (EU) 2015/1188, the unit must be installed with the TAP16R thermostat or the RB123 output control and the PDK65 presence detector (accessories). The black bulb sensor and presence detector are also available as accessories. Please note that an RB relay box is required. Regulations are also available for installations not covered by the ecodesign directive.
Recommended installation height
Recommended installation height 4 - 20 m
Dimensions & weight
Depending on the model.
Casing
Aluzink
IP class
IP44
Ambient working temperature (dry conditions)
-20 to 30 °C
Element temperature (MAX)
700 °C
Voltage
400 V
IR 3000
1125x83x358 mm, 9 kg Heating power 3kW Heat current: 4.3 A
IR 4500
1500x83x358 mm, 11 kg Heating power 4.5kW Heating current: 6.5 A
IR 6000
1875x83x358 mm, 12 kg Heating power 6kW Heat current: 8.7 A
