Electrostatic Filter
Removes grease and particles of various types present in the airflow.
Reduces the risk of fires in kitchen extraction systems.
Decreases maintenance costs by keeping the installation free of grease and dirt.
Minimizes environmental impact by purifying the air expelled outside.
Main features
Pre-filtration Removes larger particles whose capture, due to inertia, is difficult for the electrostatic filter.
Electrostatic filtration Removes medium and small grease particles, as the larger ones are retained by the prefilter. This system eliminates most of the grease and particles present in the air and contributes to its hygienization.

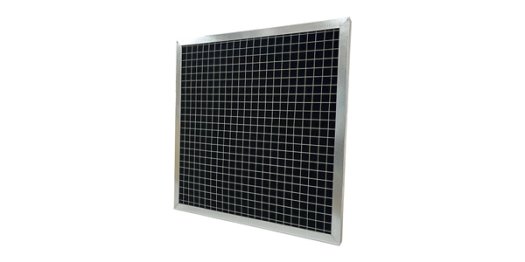

Activated carbon filter Recommended for removing low concentrations of odors. In cases of high odor density, granular activated carbon modules are recommended, which are much more efficient.
High-efficiency filter F7/F9 Allows adjustment of the filtration level according to application needs. The F9 model provides the highest available filtration category.
Dimensions
Depending on model.
Materials
Lacquered steel sheet.
Construction
Casing and structure Housing and door made of white steel sheet, with thicknesses of 1.2 mm and 1.5 mm. Interiors in white steel sheet, welded to the casing to provide greater rigidity and stability to the assembly.
Equipment Metal rails for filter installation. Drain for grease evacuation. Tabs for connection with other units or ducts.
Components
-Mesh filter -Ionizer filter -Collector filter -Activated carbon filter -F7/F9 filter -VCS direct-drive fan (optional)
Standards
Machinery regulations: Directive 89/392/EEC amended by Directives 91/368/EEC and 93/44/EEC. Low voltage: Directive 73/23/EEC. Electromagnetic compatibility: Directive 93/68/EEC. Industrial safety: Directive 93/97/EEC. Telecom terminal equipment: Directive 91/263/EEC.
Ionicmodul LUP
-2-stage electrostatic filter. 1,250 m³/h. Right or left position. -2-stage electrostatic filter. 2,500 m³/h. Right or left position. -2-stage electrostatic filter. 5,000 m³/h. Right or left position. -2-stage electrostatic filter. 10,000 m³/h. Right or left position. -2-stage electrostatic filter. 15,000 m³/h. Right or left position.
Ionicvent LUPV
-2-stage electrostatic filter. 2,500 m³/h. Right or left position. With 9/9 4p fan. -2-stage electrostatic filter. 5,000 m³/h. Right or left position. With 12/12 1.5 HP fan.
